Name:
SB Series Folding Filter Cartridges
Sort:
Filter Cartridges Material: ecumenic material View count: 216
Detail:

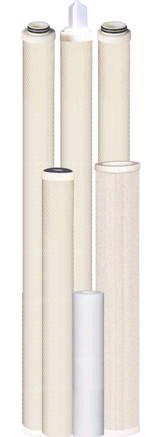

SB Series Folding Filter Cartridges
SB series folding filter cartridges precision filter element, main element is made from Polypropylene. The filter range
is from 1 μm to 10 μm. The whole body were conglutinated by melting. The products are best used for general filtering of well completion fluid, workover fluid, and injection water in petroleum exploitation. The tie-ins are three international models: 222 tie-in,226 tie-in and plate tie-in. All products are strictly checked to insure their quality.
The product has following features:
1 High filtration precision, high flow rate, low pressure reduction.
2 Large filtration area.
3 High intensity, long life.
4 Convenient to mount and replace.
Product StandardQ/320925 TDL 002-2003.
Inspection StandardQ/TDL JS02-2003.
Technical Parameter
Items

Technical Parameter

Filter precision
1,2,5,10μm
Dimension
Length
29 ",40"
O.D.
65 mm
?Inside diameter
30 mm
Working pressure? ?
0.4 MPa
Max working pressure
0.7 MPa
Highest temperature
70
Allowable PH value
1~14
Filter efficiency
≥98%



?
?
?
?
?
?
?
?
?
?

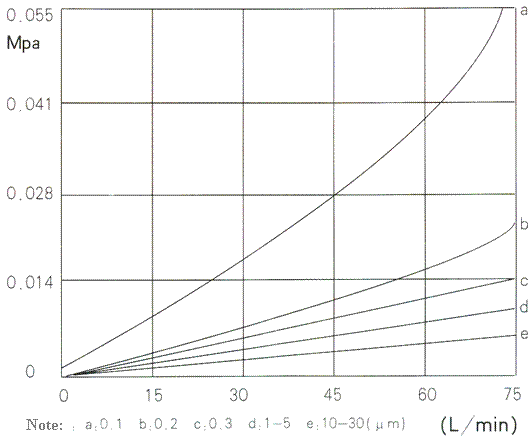

Flow Performance in Clean Water 25
Typical Data based on 10" length filter

Performance Specifications

Micron
Rating
For General Applications
Removal Rating (μm) at Various Efficiencies
90%
95%
97%
98%
1μm
0.6
0.7
0.8
1
2μm
1
1.4
1.5
2
