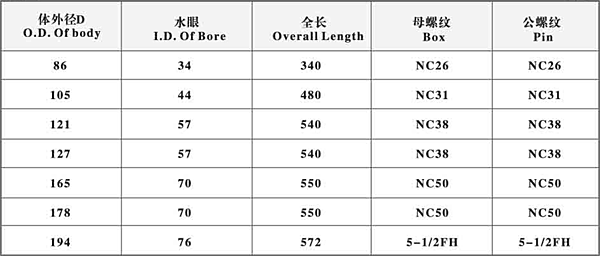

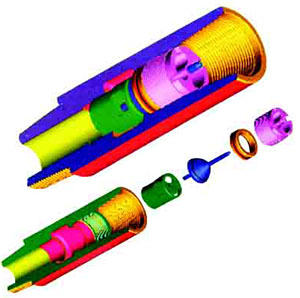

Arrow Type Check Valve Arrow Type Check Valve used to be installsd between drill stem and bit to prevent drilling fluid backflow from the bottom. The body is a crossover sub in which the other parts are installed. When backflow occurring the Arrow wiII press to valve seat so that the fluid can not flow upwards through the valve. When Arrow fall on the down seat the circulating of drilling fluid can flow through the valve without Press lose. Specifications
