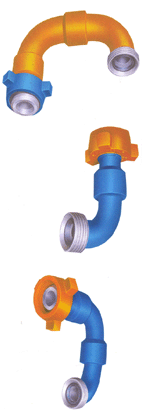

¡¡¡¡High-pressure union
¡¡¡¡
High-pressure union, importing international ad-vanced technology, is forged with high-strength alloysteel, strict heat treatment process can ensure that thenipple have uniform metallurgical structure and press-ing ability and the material meets ASTM and AISI Stan-dard and the technology indexes conform to API Spec6A , the product adopts some end connections of pipe-line thread, tubing thread, butt-weld and compress-seal.The type mainly consists of 100#, 200#, 206#, 207#,211#, 300#, 402#,600#, 602#, 1002#, 1003#, 1502#,2002# and 2202#. |

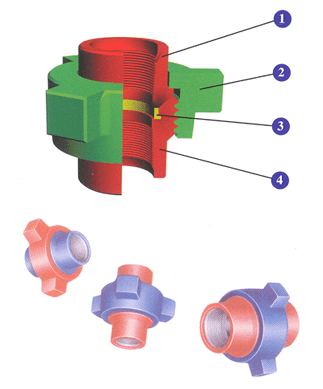

| No. |
Item |
Quantity |
Material |
Remarks |
| 1 |
Ball Head |
1 |
30CrMo |
|
| 2 |
Locking Cap |
1 |
30CrMo |
|
| 3 |
Seal Ring |
1 |
NBR |
|
| 4 |
Screw Thread Head |
1 |
30CrMo |
|
|
|
|
|
